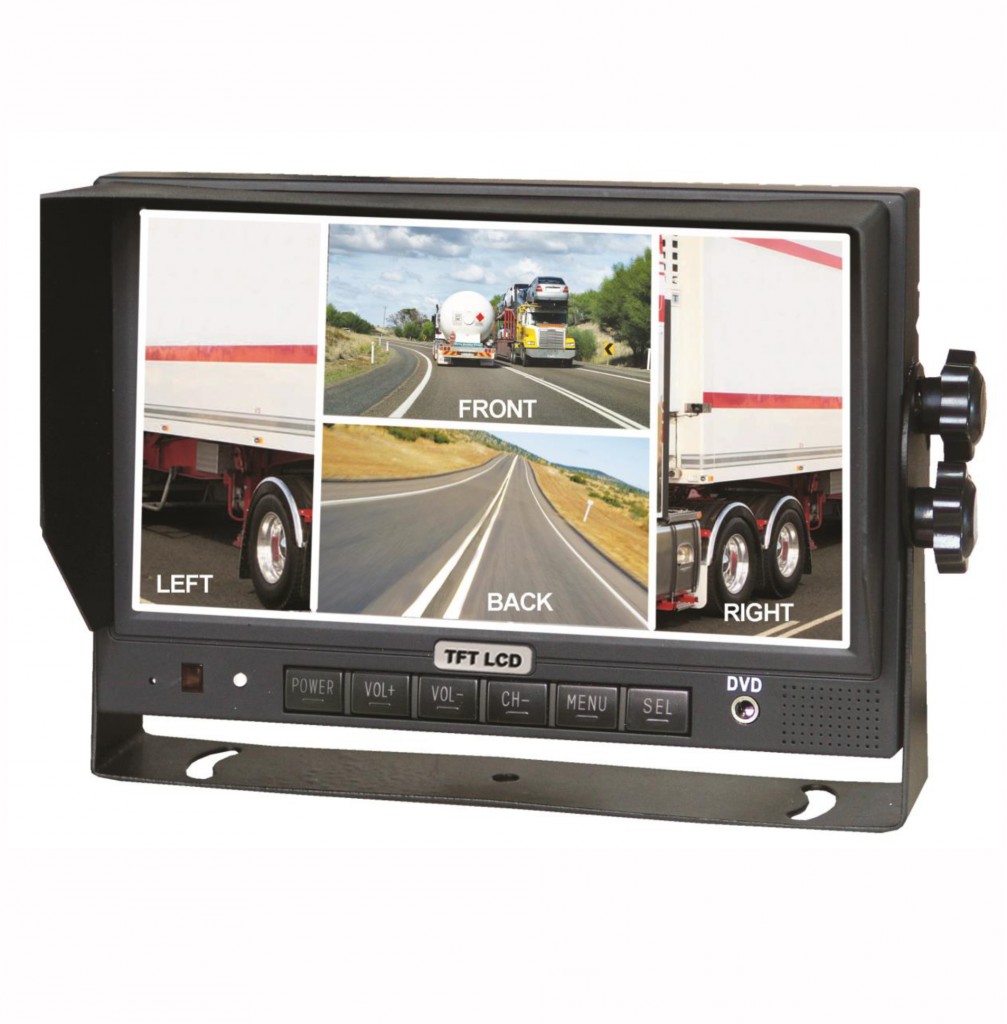

NSM-7400Q is a high performance 7”  Colour TFT LCD Monitor with a built in quad multiplexer capable of withstanding  vibrations up to 7G. The 4 channel inputs are perfect for rear & side  mounted cameras on machinery and heavy duty vehicles.


  • 7” LCD monitor with built-in quad control
  • Aspect Ratio: 16:9 Widescreen
  • Four Trigger signal inputs for auto switching
  • Resolution: 540 x 3 (RGB) x 234
  • Priority of quad and dual picture can be selected
  • Brightness: 350cd/㎡
  • TV System: NTSC/PAL
  • Contrast: 400:1
  • LED Backlighting
  • Viewing angle: U:45 º /D:65 º/ R&L:65 º
  • On-board speaker
  • AV input for:  DVD, free from video recording
  • Day/ Night Brightness modes
  • Live, REC video outputs
  • Brightness, colour, contrast ,volume of each camera can be selected separately
  • Single, dual, triple, quad-view & PIP functions
  • Auto scan: Image switching time from 1~30 secs
  • Power short protection
  • Mirror/normal image for each camera can be separately selected
  • Anti-vibration: 2.8g~7g depending on bracket used
  • Operates from: 12-32V DC in

Download brochure

Price: $0.00
